chipKit Uno32 and LDR example

In this example we connect an LDR to an analog pin of our Chipkit Uno32, depending on the reading we will then vary how bright an LED will be lit

This is adapted from an Arduino example, the code was written in the MPIDE

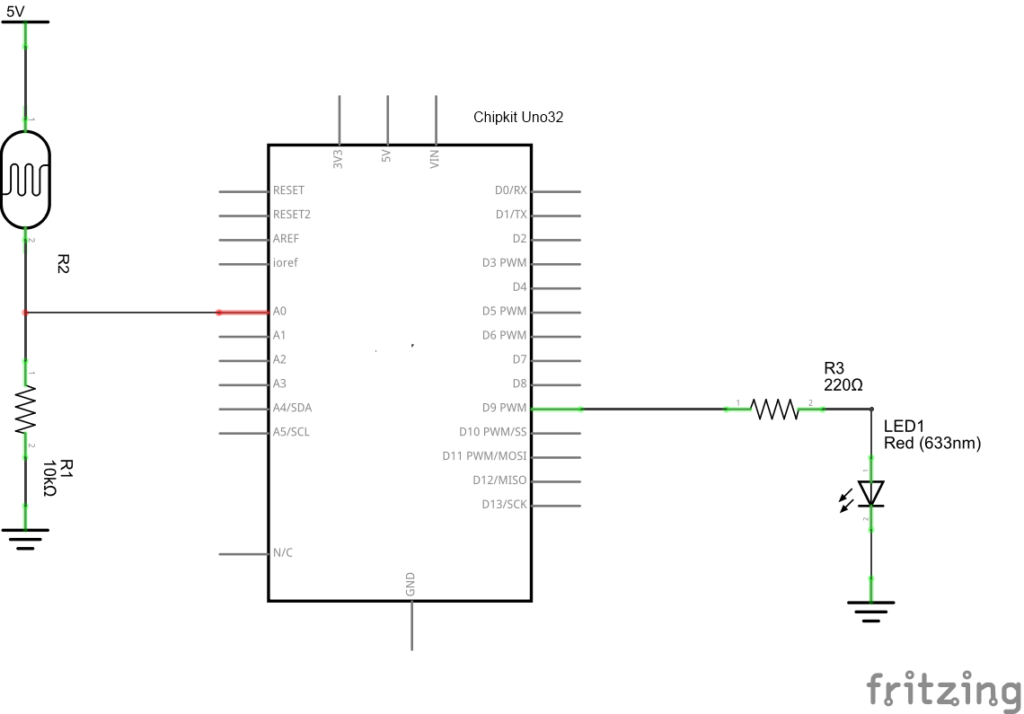

Schematic

chipkit uno32 pwm led

Code

[codesyntax lang=”cpp”]

const int analogInPin = A0;  // Analog input pin that the potentiometer is attached to
const int PWMOutPin = 9; // Analog output pin that the LED is attached to

int sensorValue = 0;        // value read from the pot
int outputValue = 0;        // value output to the PWM (analog out)

void setup()
{
}

void loop()
{
// read the analog in value:
sensorValue = analogRead(analogInPin);
// map it to the range of the analog out:
outputValue = map(sensorValue, 0, 1023, 0, 255);
// change the analog out value:
analogWrite(PWMOutPin, outputValue);
// wait 2 milliseconds for the a/d converter to settle
delay(2);
}

[/codesyntax]
