Raspberry Pi and TCS34725 Color Sensor Java example

The TCS34725 device provides a digital return of red, green, blue (RGB), and clear light sensing values. An IR blocking filter, integrated on-chip and localized to the color sensing photodiodes, minimizes the IR spectral component of the incoming light and allows color measurements to be made accurately. The high sensitivity, wide dynamic range, and IR blocking filter make the TCS3472 an ideal color sensor solution for use under varying lighting conditions and through attenuating materials. This data is transferred via an I2C to the host.

tcs47325

Parts List

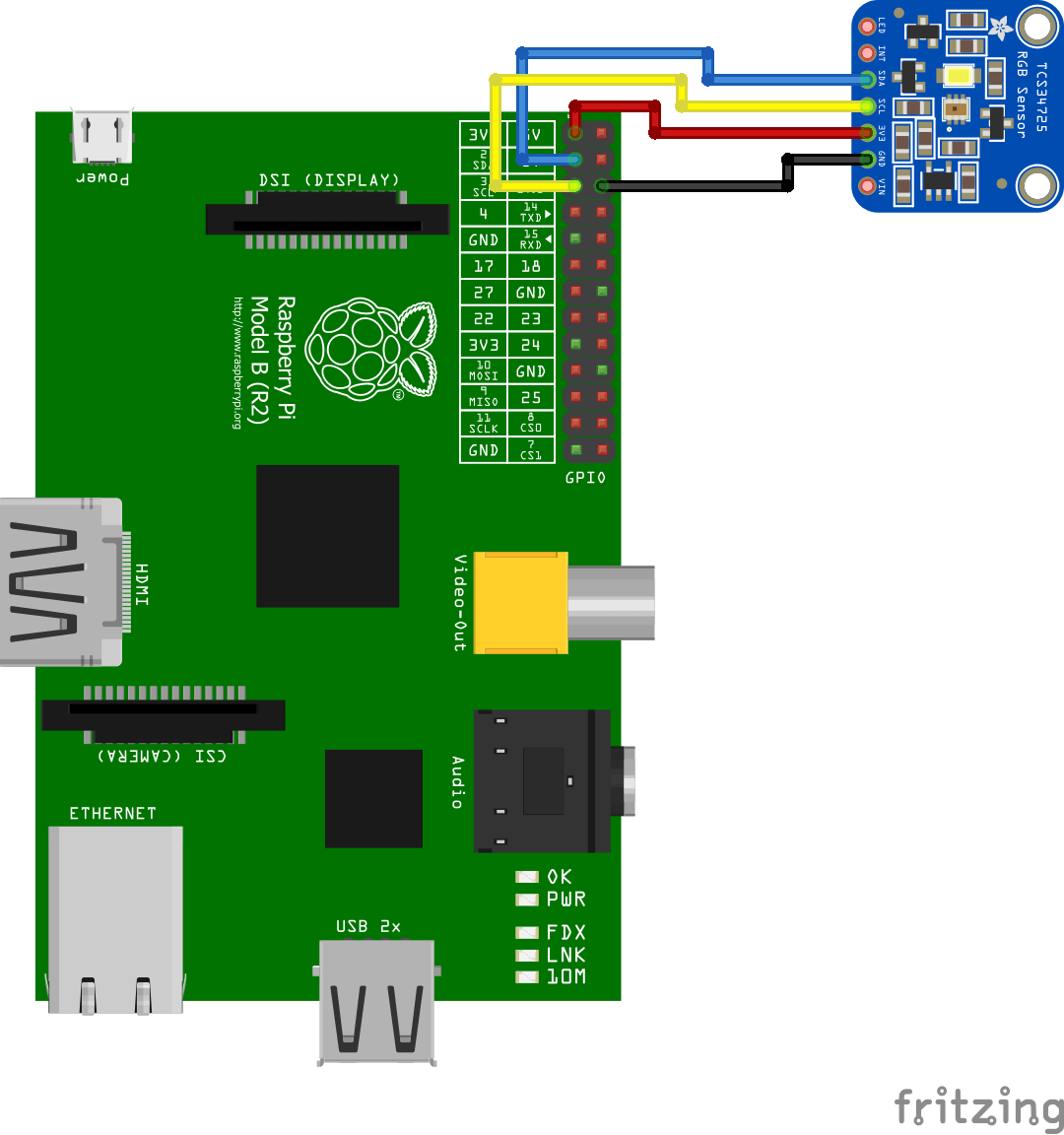

Connection and Layout

This example is for a Raspberry PI 2 connected to the module

pi and tcs34725

Code

This example worked well

[codesyntax lang=”java”]

// Distributed with a free-will license.
// Use it any way you want, profit or free, provided it fits in the licenses of its associated works.
// TCS34725
// This code is designed to work with the TCS34725_I2CS I2C Mini Module available from ControlEverything.com.
// https://www.controleverything.com/products

import com.pi4j.io.i2c.I2CBus;
import com.pi4j.io.i2c.I2CDevice;
import com.pi4j.io.i2c.I2CFactory;
import java.io.IOException;

public class TCS34725
{
	public static void main(String args[]) throws Exception
	{
		// Create I2CBus
		I2CBus bus = I2CFactory.getInstance(I2CBus.BUS_1);
		// Get I2C device, TCS34725 I2C address is 0x29(41)
		I2CDevice device = bus.getDevice(0x29);

		// Select enable register
		// Power ON, RGBC enable, wait time disable
		device.write(0x80, (byte)0x03);
		// Select ALS time register
		// Atime = 700 ms
		device.write(0x81, (byte)0x00);
		// Select Wait Time register
		// WTIME : 2.4ms
		device.write(0x83, (byte)0xFF);
		// Select control register
		// AGAIN = 1x
		device.write(0x8F, (byte)0x00);
		Thread.sleep(800);

		// Read 8 bytes of data
		// cData lsb, cData msb, red lsb, red msb, green lsb, green msb, blue lsb, blue msb
		byte[] data = new byte[8];
		device.read(0x94, data, 0, 8);
		// Convert the data
		int cData = ((data[1] & 0xFF) * 256) + (data[0] & 0xFF);
		int red = ((data[3] & 0xFF) * 256) + (data[2] & 0xFF);
		int green = ((data[5] & 0xFF) * 256) + (data[4] & 0xFF);
		int blue = ((data[7] & 0xFF) * 256) + (data[6] & 0xFF);

		// Calculate final lux
		double luminance = (-0.32466 * red) + (1.57837 * green) + (-0.73191 * blue);

		// Output data to Screen
		System.out.printf("Red Color Luminance   : %d lux %n", red);
		System.out.printf("Green Color Luminance : %d lux %n", green);
		System.out.printf("Blue Color Luminance  : %d lux %n", blue);
		System.out.printf("IR Luminance          : %d lux %n", cData);
		System.out.printf("Ambient Light Luminance : %d lux %n", luminance);
	}
}

[/codesyntax]

Output
